Specifications

SKU: DUPRMX3-WW
Barcode (EAN): 9350784023834
Displays: Single display, Dual display, Triple display
Displays: Dual display
Host Connection Technology: USB-C
Mac Processor Type: M1/M2, M1/M2 Ultra/Pro/Max, Intel
Display supported on Mac M1/M2: Single display
Display supported on Mac M1/M2 Ultra/Pro/Max: Single display
Display supported on Windows: Single display, Dual display, Triple display
Docking Station Type: Desktop
Warranty: 2 Years
Physical Characteristics: Product Dimensions: 190 x 90 x 26.5mm (W x D x H) | Colour: Space Grey and Black | Weight (product): 535g | Materials: ABS
Additional Features: Ethernet, 3.5mm Audio, Card Reader
Compliance: FCC, CE, RoHS
Resolution:
Up to 2 x 4K UHD 60Hz or 3 x 4K UHD 30Hz with DP 1.4 HBR3 DSC enabled
host* | *See resolution support table below for maximum outputs
Input: 1 x USB-C Port
Output:
3 x DisplayPort (DP1.4/DP++), 1 x USB-C 3.1 Gen 2 (10G) BC 1.2 and
Apple Charging Support, 1 x USB-A 3.1 Gen 1 (5G) BC 1.2 and Apple
Charging Support, 2 x USB-A 3.1 Gen1 (5G), 1 x 3.5mm TRRS Audio /
Microphone Jack, 1 x RJ45 Ethernet 1Gbps, 1 x SD Card Re
Device Compatibility: Apple, Microsoft

Downloads

User Manual

Specification Sheet

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

MX3 USB-C Triple Display DP Alt. Mode Docking Station - With 100W Power Delivery

Name: MX3 USB-C Triple Display DP Alt. Mode Docking Station - With 100W Power Delivery
Brand: ALOGIC Singapore
SKU: DUPRMX3-WW
Price: 381.99 SGD
Availability: InStock

SKU: DUPRMX3-WW

$381.99

Tax included. Shipping calculated at checkout.

FREE SHIPPING
Express Shipping & Free Returns
14 Days Money Back Guarantee

24/7 Customer Support
100% Secure Online Shopping

Specifications

SKU: DUPRMX3-WW
Barcode (EAN): 9350784023834
Displays: Single display, Dual display, Triple display
Displays: Dual display
Host Connection Technology: USB-C
Mac Processor Type: M1/M2, M1/M2 Ultra/Pro/Max, Intel
Display supported on Mac M1/M2: Single display
Display supported on Mac M1/M2 Ultra/Pro/Max: Single display
Display supported on Windows: Single display, Dual display, Triple display
Docking Station Type: Desktop
Warranty: 2 Years
Physical Characteristics: Product Dimensions: 190 x 90 x 26.5mm (W x D x H) | Colour: Space Grey and Black | Weight (product): 535g | Materials: ABS
Additional Features: Ethernet, 3.5mm Audio, Card Reader
Compliance: FCC, CE, RoHS
Resolution:
Up to 2 x 4K UHD 60Hz or 3 x 4K UHD 30Hz with DP 1.4 HBR3 DSC enabled
host* | *See resolution support table below for maximum outputs
Input: 1 x USB-C Port
Output:
3 x DisplayPort (DP1.4/DP++), 1 x USB-C 3.1 Gen 2 (10G) BC 1.2 and
Apple Charging Support, 1 x USB-A 3.1 Gen 1 (5G) BC 1.2 and Apple
Charging Support, 2 x USB-A 3.1 Gen1 (5G), 1 x 3.5mm TRRS Audio /
Microphone Jack, 1 x RJ45 Ethernet 1Gbps, 1 x SD Card Re
Device Compatibility: Apple, Microsoft

Downloads

User Manual

Specification Sheet

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

SIMPLIFIED CONNECTIVITY- DP Alt. Mode Technology

The MX3 makes multi-display set ups simple. Featuring DP Alt Mode technology, it connects directly with up to three displays and multiple other accessories. No need to install drivers or software. Plug in and go.

SINGLE 5K DISPLAY WITH MAC

The MX3 is a powerful docking station for Mac users seeking to add a dazzling, ultra-high resolution display for their desk set up.

TRIPLE 4K DISPLAYS WITH WINDOWS

Windows users can plug into the MX3 to run up to three ultra-high resolution external displays.

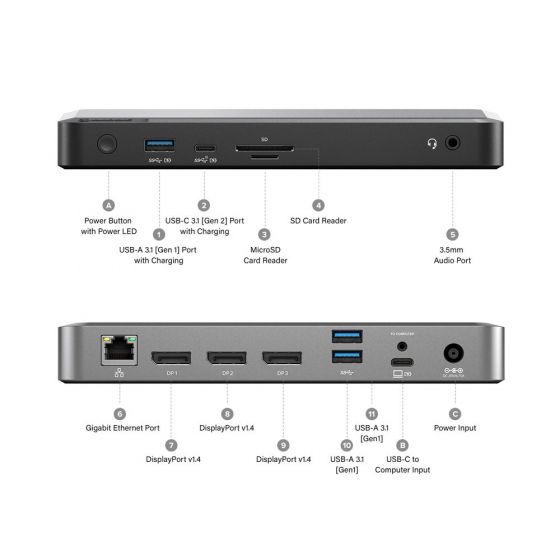

11 HIGH-PERFORMANCE PORTS

USB-A 3.1 Gen 1 (5G) BC 1.2 & Apple Charging Support connects with older laptops and charges Apple device

USB-C 3.1 Gen 2 (10G) BC 1.2 & Apple Charging Support connects with modern laptops and charges Apple devices

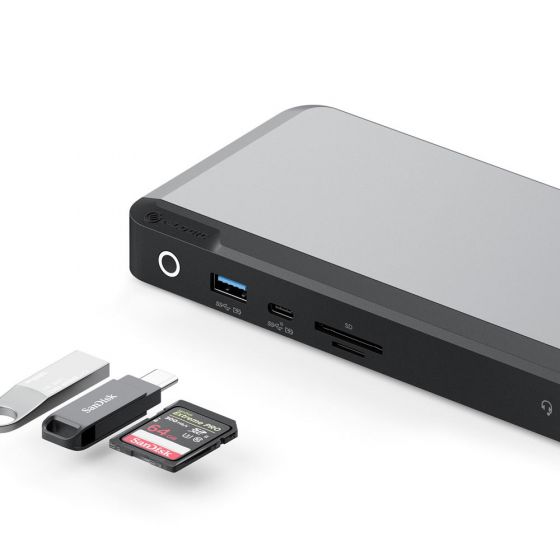

Micro SD Card Reader (SD 4.0) for speedier downloads

SD Card Reader (SD 4.0) for speedier downloads

3.5mm TRRS Audio/Microphone Jack supports quality recording and playback

RJ45 Ethernet 1 Gbps for speedy data transfer

DisplayPort (DP1.4/DP++) for generous bandwidth data transmission

SB-A 3.1 Gen1 (5G) works with older laptops

USB-A 3.1 Gen1 (5G) works with older laptops
